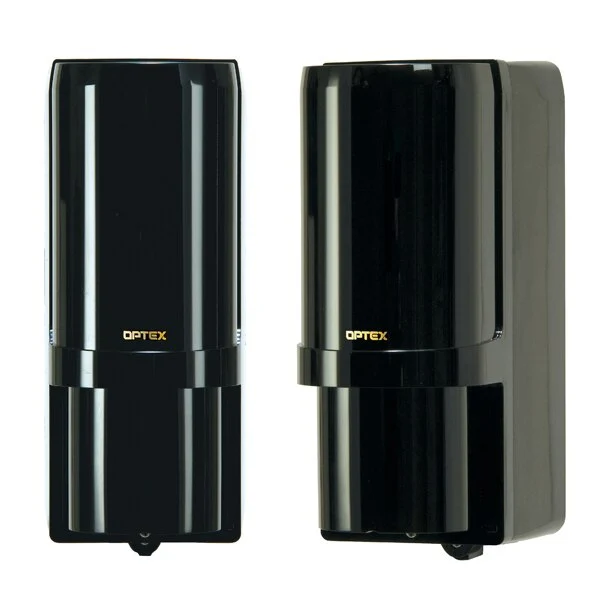

Absolute Optex AX200 Plus Dual Photoelectric Beam Pair

Optex AX200 Plus Dual Photoelectric Beam Pair

The Optex full-featured 200′ Dual Photoelectric Beam is one of the industry’s full-featured short range photobeams. Built into the device are ‘Finger-Touch’ alignment controls which, along with precise beam definition, combine with gun-sights and voltage meter jacks to make installation quite an easy process for you! This device also comes with a weatherproof (IP55) rubber ”O” ring to keep out insects, dirt and dust. On top of these features, you also don’t have to worry about lightning being a problem as the device has lightning protection exceeding 14kV in a form C relay. Don’t miss out, get yours today!

Optex AX200 Plus Specifications

• Detection Method: Infrared Photoelectric
• Range: 200′ Outdoors – 400′ Indoors
• Beam Characteristics
• Interruption Period: 50 ~ 500msec (selectable)
• Power Input: 10.5 ~ 28V DC
• Current Draw (Transmitter and Receiver): Normal Operation 46mA max
• Alarm Period: 2sec nominal
• Alarm Output: Form C Relay (28V DC 0.2A max)
• Tamper Switch: N.C Opens when cover is removed *Receiver Only
• Operating Temperature: -13°F ~ 131°F (-25°C ~ 55°C)
• Environment Humidity: 95%RH MAX
• Mounting: Wall or Pole

Optex AX200 Plus Includes

• 1 x Optex Photobeam Transmitter
• 1 x Optex Photobeam Receiver

Optex AX100 Plus Support

• Optex PLUS – Manual
• Optex PLUS – Flyer
