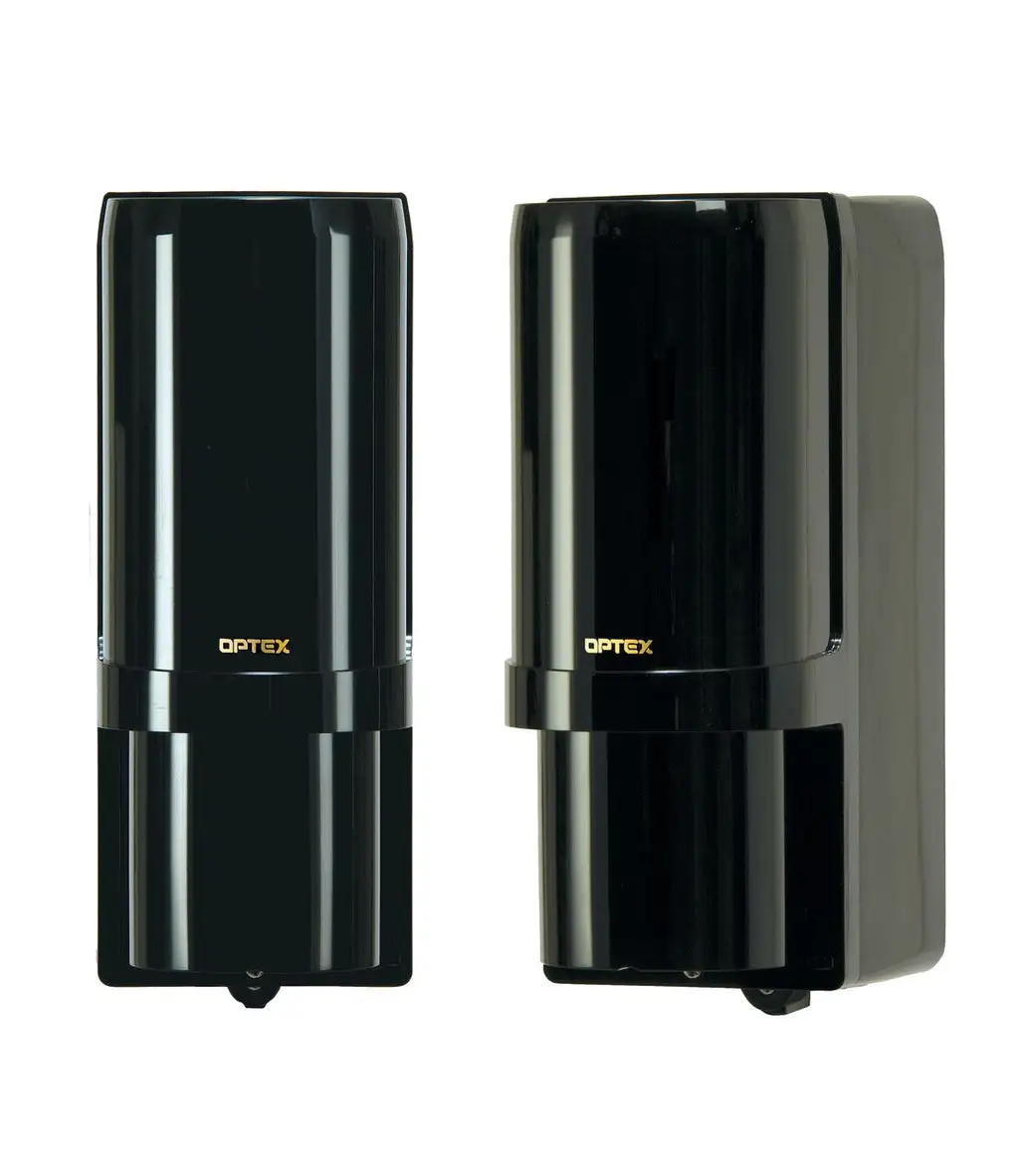

Optex AX100TFR/200TFR Active Infrared Wireless Sensor Pair

The AX-100TFR from OPTEX is the next generation of the perimeter security industry, offering a significant cost saving alternative to a traditional hardwired system. This device requires absolutely no trenching which will exponentially reduce the cost of installation. The unit comes wireless ready with a multi functional back box and is compatible with most manufacturers wireless systems. This device comes (and the rest of the series) comes with four (4) 3.6V batteries, that have an average lifespan of approximately five (5) years on the 100 ft. model and three (3) years on the 200 ft. model.

Optex AX100TFR/200TFR Wireless Sensors Specifications

AX-100TFR

Range: 30m (100ft)
Maximum Arrival Distance: 265m (870ft.)
Infrared beam interruption detection
Beam Frequency Selection: 4 channel
Interruption Period: Variable between 50, 100, 250, 500msec (4 steps)
Power Source: 3.6V 13.0Ah : LSH20 lithium batteries manufactured by SAFT Transmitter : 2 units Receiver : 2 units
Current Draw: 620μA T:300μA + R:320μA (at 25°C,3.6VDC)
* Battery Life: Approximately 5 years
Alarm Output: Form C-Solid State Switch : 3.6VDC, 0.01A
Alarm Period: 2 sec (± 1) nominal
D.Q. Output: Form A/B-Solid State Switch : 3.6VDC, 0.01A
Tamper Output for Front Cover: Form C : 3.6VDC, 0.01A opens when cover removed. (Receiver only)
Tamper Output for Back Box: Form C : 3.6VDC, 0.01A opens when either back box or chassis is removed from the installment.
Low Battery Output: Form A/B-Solid State Switch: 3.6VDC, 0.01A (Transmitter & Receiver)
Alarm Indicator (Receiver): Alarm : ON, Light receiving : flicker or OFF
Power (Transmitter): Power ON : ON, Power OFF : OFF
Low Battery Voltage Reduction : flicker
Operating Temperature: -20°C +60°C(-4°F 140°F)
Operating Ambient Humidity: 95%(Max.)
Alignment Angle: ± 90° Horizontal, ± 5° Vertical
Indoor/Outdoor, Wall/Pole/Tower mounting (Optional main unit mounting brackets are required, when the units mount in the tower.)
Weight: 1600g (56.5oz) (Total weight of transmitter + receiver, excluding accessories)
International Protection: IP55

AX-200TFR

Range: 60m (200ft.)
Maximum Arrival Distance: 530m (1,740ft.)
Infrared beam interruption detection
Beam Frequency Selection: 4 channel
Interruption Period: Variable between 50, 100, 250, 500msec (4 steps)
Power Source: 3.6V 13.0Ah : LSH20 lithium batteries manufactured by SAFT Transmitter : 2 units Receiver : 2 units
Current Draw: 810μA T:490μA + R:320μA (at 25°C,3.6VDC)
* Battery Life: Approximately 3 years
Alarm Output: Form C-Solid State Switch : 3.6VDC, 0.01A
Alarm Period: 2 sec (± 1) nominal
D.Q. Output: Form A/B-Solid State Switch : 3.6VDC, 0.01A
Tamper Output for Front Cover: Form C : 3.6VDC, 0.01A opens when cover removed. (Receiver only)
Tamper Output for Back Box: Form C : 3.6VDC, 0.01A opens when either back box or chassis is removed from the installment.
Low Battery Output: Form A/B-Solid State Switch: 3.6VDC, 0.01A (Transmitter & Receiver) Alarm Indicator (Receiver): Alarm : ON, Light receiving : flicker or OFF
Power (Transmitter): Power ON : ON, Power OFF : OFF
Low Battery Voltage Reduction : flicker
Operating Temperature: -20°C +60°C(-4°F 140°F)
Operating Ambient Humidity: 95%(Max.)
Alignment Angle: ± 90° Horizontal, ± 5° Vertical
Indoor/Outdoor, Wall/Pole/Tower mounting (Optional main unit mounting brackets are required, when the units mount in the tower.)
Weight: 1600g (56.5oz) (Total weight of transmitter + receiver, excluding accessories)
International Protection: IP55
